ANNKE 5MP Analog HD Bullet Surveillance Camera 2.8mm Outdoor
ANNKE 5MP Analog HD Bullet Surveillance Camera 2.8mm Outdoor
Couldn't load pickup availability
Get crystal 3K detail and rugged outdoor reliability with this ANNKE 5MP analog HD bullet camera.
- You get 3K CMOS sensor delivering 2960×1665 resolution (16:9) across PAL/NTSC for sharp daytime imagery.
- You enjoy a 107° wide field of view from the 2.8 mm lens while color stays clear down to 0.01 lux (F1.2, AGC ON).

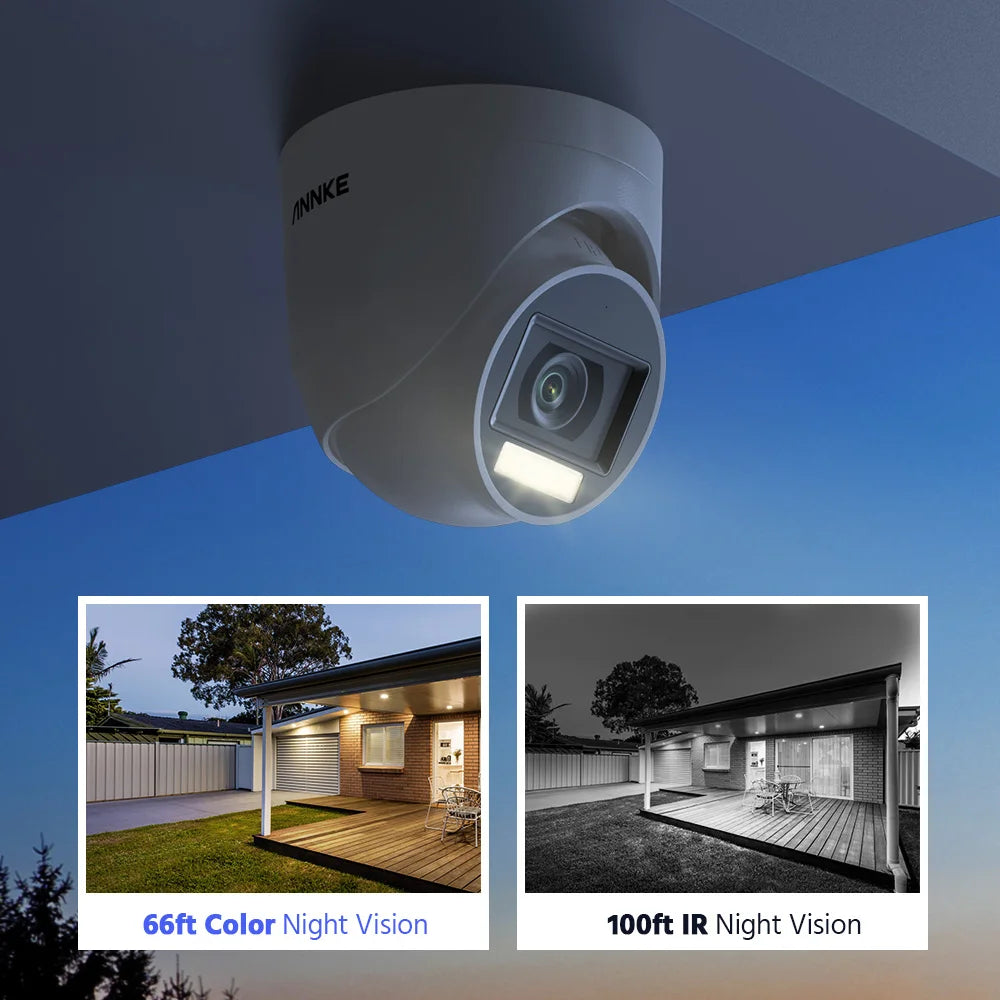

- You can rely on IR up to 25 m and white-light up to 20 m; built-in mic enables audio over coaxial cable for enhanced awareness.

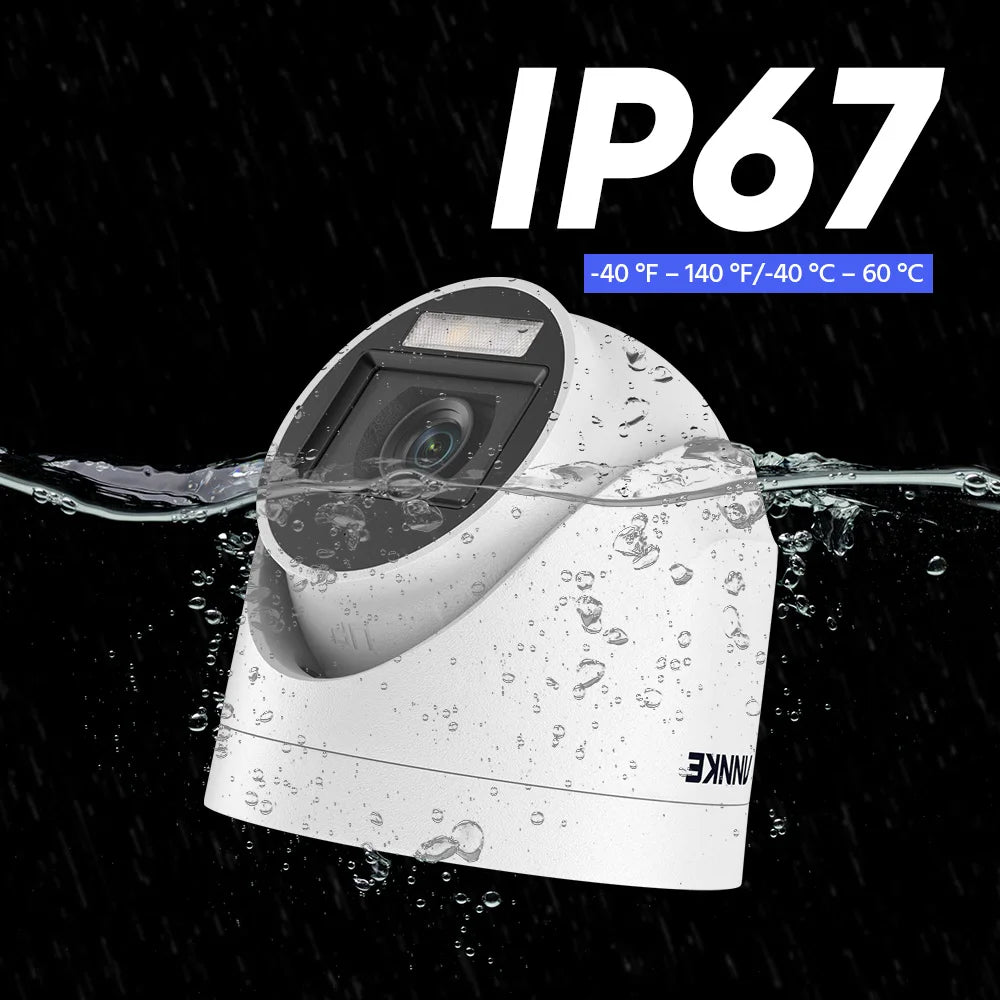

- Its rugged IP67 housing supports indoor/outdoor use in -40 to 60 C; powered by 12 VDC up to 2.9 W; switchable TVI/AHD/CVI/CVBS (4-in-1); note: compatible only with DW81KD-V6 and DW61LD-V6 DVRs (not compatible with third-party DVRs); compact size 138.8×60.9×57.9 mm, 155 g.
Analog HD Camera | ||
Camera |
Image sensor |
3K CMOS Image sensor |
Video Resolution |
2960 (H) × 1665 (V)(16:9) |
|
Signal System |
PAL/NTSC |
|
Frame Rate |
TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps |
|
Lens |
2.8mm |
|
Min.Illumination |
Color:0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
|
Angle of View |
Horizontal FOV: 107°, vertical FOV: 64°, diagonal FOV: 129° |
|
Supplement Light type |
1 white Light & 2 EXIR |
|
Supplement Light Range |
IR: Up to 25 m, white Light: Up to 20 m |
|
Supplement Light Mode |
IR light works normally, and it switches to white light when human or vehicle are detected at night. |
|
Wide Dynamic Range |
Digital WDR |
|
Audio |
Built-in mic |
|
IR Cut Filter |
Yes |
|
Video Output |
BNC, switchable TVI/AHD/CVI/CVBS |
|
General |
Housing |
Plastic |
Color |
White |
|
Operating Power |
12 VDC ± 25% |
|
Consumption |
Max. 2.9 W |
|
Operating Temperature |
-40 °F – 140 °F /-40 °C – 60 °C |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Weatherproof Rating |
IP67 |
|
Dimension (L x W x H) |
138.8 mm × 60.9 mm × 57.9 mm (5.47" × 2.4 " × 2.3") |
|
Weight |
Approx. 155 g (0.34 lb.) |
|
